3U Vision srl.
Hi-Tech sorting machines. Innovation and precision Made in Italy.
With 3U Vision from Imola/Italy, we have been able to win the most innovative manufacturer of colour sorting machines as a cooperation partner. 3U Vision was founded in 2019 as a family business and has stood for competence in optical sorting systems for over 40 years.
The claim of 3U Vision is highest innovation and technological precision in combination with local production of hardware and software. Research and development is carried out in-house and also as a research partner of the Universities of Sapienza/Rome and Bologna.
The claim of 3U Vision is highest innovation and technological precision in combination with local production of hardware and software. Research and development is carried out in-house and also as a research partner of the Universities of Sapienza/Rome and Bologna.
3U Vision develops the most innovative and efficient sorting machines on the market today. Combined multi-spectral cameras allow the simultaneous use of RGB, IR and SWIR technology. In combination with in-house developed high-speed ejectors, unprecedented sorting results and capacities for food, plastics and metals are achieved.
3U Vision SORTING MACHINES – PRODUCTION AND DEVELOPMENT MADE IN ITALY
Research and development for the high-tech production of innovative sorting machines.
3U Vision Production and Development
3U Vision FENIX Colour Assortment Hazelnuts
3U Vision COLOR SORTER
3U Vision offers 3 sorting machine lines with different focuses.
FENIX – Premium sorters with innovative technological components and expandable systems.
OPTICA – High-quality all-rounder with optimal price/performance ratio
HYPERION – Special machines for intensive use, also for heavy products
3U Vision
FENIX
- 4-wavelength multispectral camera system as standard with combined RGB and IR in a single 4K sensor
- Optionally upgradeable with SWIR InGaAs cameras
- Flat spectrum LED to replicate natural sunlight spectrum
- 96 state-of-the-art ejectors per channel with 3.2 mm spacing
- Multi-wavelength LED with focusing lens
- Automatic control and compensation of vibrator speed
- Trough width 307mm
Capacities from 1-8 troughs
Suitable for the following products
- Plastics
- Recyclates
- Pellets
- Flakes
- Granules
- Virgin Products
and also
- Cereals and Seeds
- Pulses
- Nuts
- Coffee beans
- Sunflower and pumpkin seeds
Download Datasheet FENIX
Download Brochure FENIX
3U Vision

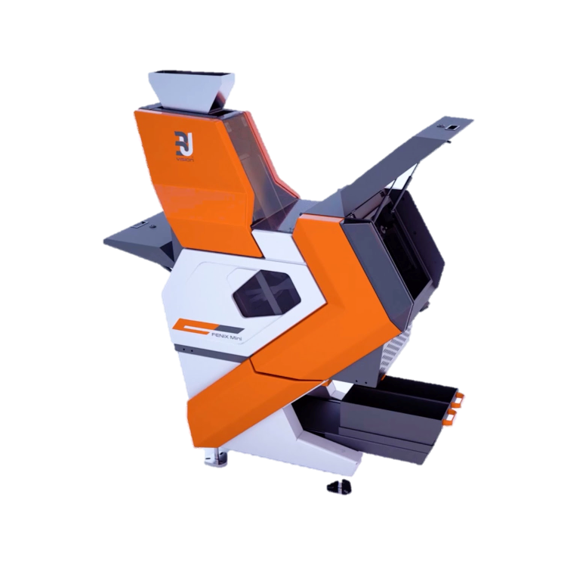

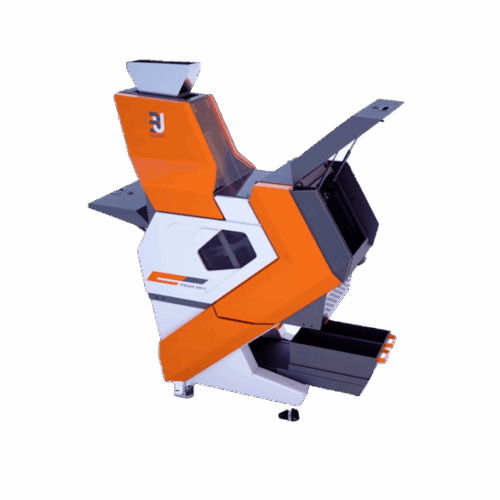

FENIX mini
Fenix Mini: the brand new, compact optical sorter from 3U Vision,
specially developed for small, exclusive, high-quality products.
- 4-wavelength multi-spectral camera system as standard with combined RGB and IR in a single 4K sensor
- Can be optionally upgraded with SWIR InGaAs cameras
- LED with flat spectrum to replicate the natural sunlight spectrum
- 15-inch touchscreen display
- Ejector with 3.2 mm distance
- Multi-wavelength LED with focusing lens
- Automatic control and compensation of the vibrator speed
- Trough width 307mm
- OPTIONAL: Base frame with integrated hoppers and drawer pull-outs
Technical data:
- WIDTH: 590 mm
- DEPTH: 1230 mm
- HEIGHT body only: 1200 mm
- HEIGHT with stand: 1700 mm
Download Datasheet FENIX mini
3U Vision
OPTICA
- 4-wavelength multi-spectral camera system as standard with combined RGB and IR in a single 4K sensor
- Flat spectrum LED to replicate natural sunlight spectrum
- 64 state-of-the-art ejectors per channel with 3.6 mm spacing
- Automatic control and compensation of vibrator speed
- Chute width 245mm
- Capacities from 1-8 chutes
Suitable for the following products
- Plastics
- Recyclates
- Pellets
- Flakes
- Granules
- Virgin Products
and also
- Cereals and Seeds
- Pulses, beans
- Coffee and nuts
- Sunflower and pumpkin seeds
- Rye and red beans
Download Datasheet OPTICA
Download Brochure OPTICA
3U Vision

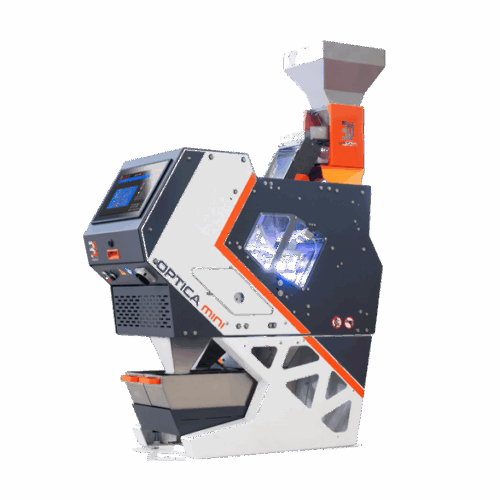

OPTICA mini
- 4-wavelength multispectral camera system as standard with combined RGB and IR in a single 4K sensor
- 15-inch touchscreen display
- Ejector with 4.8 mm spacing
- Automatic control and compensation of the vibrator speed
- OPTIONAL: Base frame with hoppers and drawer pull-outs
Technical data:
- WIDTH: 474 mm
- DEPTH: 1230 mm
- HEIGHT housing only: 1200 mm
- HEIGHT with stand: 1700 mm
Download Datasheet OPTICA mini
3U Vision
HYPERION
- 4-wavelength multispectral camera system as standard with combined RGB and IR in a single 4K sensor
- 2 SWIR InGaAs cameras per trough
- Optional hyperspectral cameras
- Flat spectrum LED to replicate the natural sunlight spectrum
- Multi-wavelength LED with focusing lens
- 96 state-of-the-art ejectors per gutter with 3.2 mm spacing
- Automatic control and compensation of vibrator speed
- Chute width 600mm or 1200mm
Suitable for the following products
- Recyclate
- Pellets
- Flakes
- Granules
- Virgin Products
- Stones for demanding use
and also
- Beans
- Peanuts
- Coffee beans
- Macadamia nuts
- Sunflower seeds
Download Datasheet HYPERION
Download Brochure HYPERION
3U Vision
OPTICA HDX Stainless Steel
- full stainless steel body
- for salts, minerals and stones
- 4-wavelength multispectral camera system as standard with combined RGB and IR in a single 4K sensor
- cameras with 0.05mm ultra-high definition resolution
- LED with flat spectrum to replicate natural sunlight spectrum
- 64 state-of-the-art ejectors per gutter with 3.6 mm spacing
- Automatic control and compensation of vibrator speed
- Chutes width 245mm
Suitable for the following products
- White rice
- Parboiled
- Venus ®
- Basmati
- Husked rice
- Broken rice
and any other variety available on the market.
Download OPTICA HDX Brochure
Do you have any questions about the 3U Vision colour sorting machines?
